Type Tested Switch Boards
ScionTM Low Voltage Distribution Board
Fully Type Tested : IEC 61439-1
- Clear , Easy & Reliable Operation
- Compact, Space-Saving Design
- Expandable Cabinet
- Easy Assembly due to clear separation of the functional areas

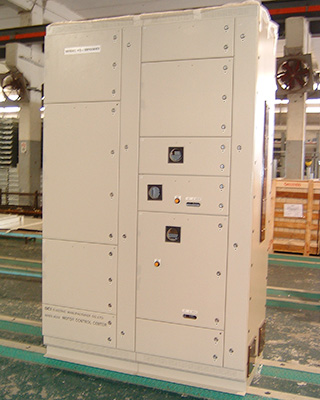

Low Voltage Motor Control Center (MCC)
Fully Type Tested : IEC 61439-1
Internal Arc Fault Test : IEC 61641
- Withdrawable Type
- 380/415 VAC 3PH 4W 50HZ, 60HZ
- 200 VAC 3PH 3W 50HZ, 60HZ
- Max. Rated Current (AMPS) : Up to 1500 AMPS
- Degree of Protection : IP 4X , IP 41

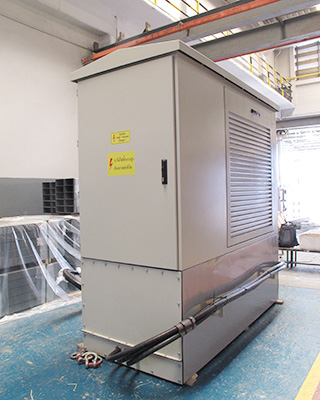

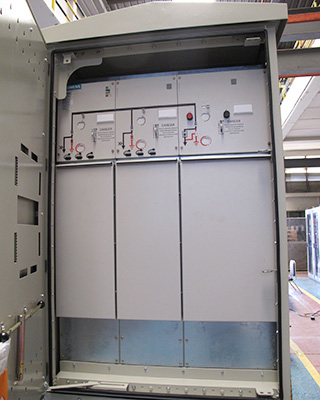

Unit Substation
IEC 62271 High Voltage / Low Voltage Pre-fabricated Substation
General & Usage
The Pre-Fabricated Substation or Unit Substation or Unit Compack Substation
are furnished tested and type tested equipment comprising high-voltage switchgear, transformer and low-voltage switchgear, connections and auxiliary equipment.
The Unit Substation are able to located and accessible to the public and safety for persons according to the standard service condition.
