ALUMINIUM LADDER TRAY
SCI Aluminium Ladder Tray , the I-shape of the Side Rail and Rectangular shape of the Rung are made of high strength profiled Aluminium Alloy T6063. The sizes and loading capacities are designed for various usages and very easily to install.
The Perforated Tray and Cover can also be made of Aluminium Sheet A5053 or A1100.
SCI STANDARD : ALU TYPE
(MADE TO ORDER AS CLIENT's REQUIRMENT ARE AVAILABLE)
The Perforated Tray and Cover can also be made of Aluminium Sheet A5053 or A1100.
SCI STANDARD : ALU TYPE
(MADE TO ORDER AS CLIENT's REQUIRMENT ARE AVAILABLE)
| Height | : | 100, 150mm |
| Width | : | 150, 225, 300, 450, 600, 750 and 900 mm |
| Length | : | 3000 / 6000mmL |
| Available in | : | Aluminium Alloy T6063 |
  |
 |

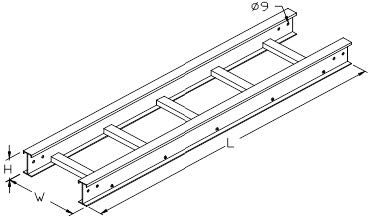

| STRAIGHT SECTION | HORIZONTAL ELBOW 90DEG |
 |
 |

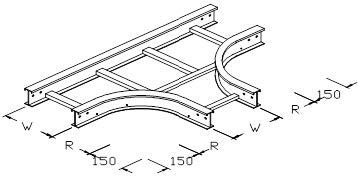

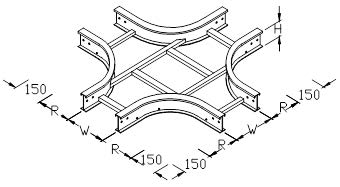

| HORIZONTAL TEE | HORIZONTAL CROSS |
 |
 |
| NSIDE VERTICAL 90DEG | OUTSIDE VERTICAL 90DEG |
 |
 |
| SPLICE PLATE | HORIZONTAL ADJUST PLATE |
 |
 |
| VERTICAL ADJUST PLATE | HOLD DOWN CLAMP |
 |
 |
| BOLT & NUT FOR ACCESSORIES | BOLT & NUT FOR HOLD DOWN CLAMP |
