CABLE TRUNKING / WIREWAY

SCI Trucking system wireway are manufactured from Steel surface treatment with Powder coating suitable for indoor used. Hot Dip Galvanized coat or Aluminium or Stainless Steel are suitable for Outdoor used. The materials are widely accepted and specified by Consulting Engineers and Electrical Contractors. The feature is designed for easily installation and erection with separated cover for fixing bolts or locking type or hinge type (NEMA 1 or / and NEMA 3R).

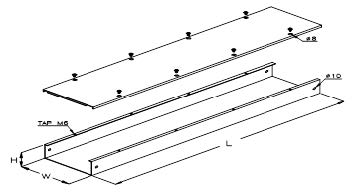

SCI STANDARD : WWN TYPE
(MADE TO ORDER AS CLIENT's REQUIRMENT ARE AVAILABLE)


Height	:	50, 100, 150mm
Width	:	50, 75, 100, 150, 200, 300, 400, 500 and 600 mm
Length	:	2400 / 3000mmL
Available in	:	Hot Dip Galvanized after Fabrication Painting RAL 7032



STRAIGHT SECTION	HORIZONTAL ELBOW 90DEG
HORIZONTAL TEE	HORIZONTAL CROSS
INSIDE VERTICAL 90DEG	OUTSIDE VERTICAL 90DEG
SPLICE PLATE	FITTING SPLICE PLATE
FLANGE END	BLIND END
BOLT & NUT FOR ACCESSORIES	BOLT & NUT FOR COVER
OTHER TYPES OF TRUNKING / WIREWAY

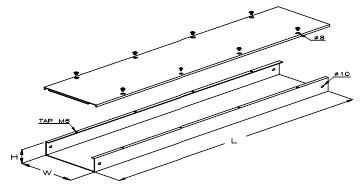

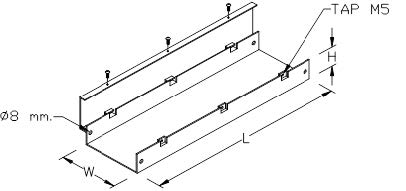

WIREWAY : WWL TYPE	WIREWAY : WWB TYPE
HEIGHT : 50, 100, 150mm	HEIGHT : 50, 100, 150mm
AVAILABLE IN : Hot Dip Galvanized after Fabrication Painting RAL 7032	AVAILABLE IN : Hot Dip Galvanized after Fabrication Painting RAL 7032

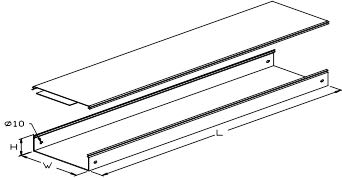

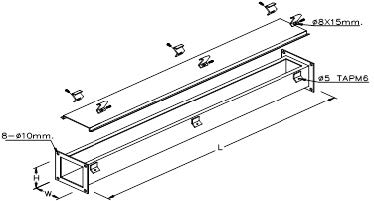

WIREWAY : WWH TYPE	WIREWAY : WWP TYPE
HEIGHT : 50, 100, 150mm	HEIGHT : 50, 100, 150mm
AVAILABLE IN : Hot Dip Galvanized after Fabrication Painting RAL 7032	AVAILABLE IN : Hot Dip Galvanized after Fabrication Painting RAL 7032
