CABLE TRAY : LADDER TYPE

SCI Ladder Type ,the E-shape side rail and structural rungs are MIG weld to increase strength and withstand abuse. All edges are finishing to smooth the surface to prevent insulation damage. The various type such as CLC Type, CLU Type, CLF Type. Extra Heavy Duty Type is CLJ Type which is carried load & deflection more than usual standard. An Export general use CLZ Type.

SCI STANDARD : CLE TYPE
(MADE TO ORDER AS CLIENT's REQUIRMENT ARE AVAILABLE)


Height	:	100, 120 and 150mm
Width	:	150, 225, 300, 450, 600, 750 and 900 mm
Length	:	3000 / 6000mmL
Available in	:	Hot Dip Galvanized after Fabrication Painting RAL 7032

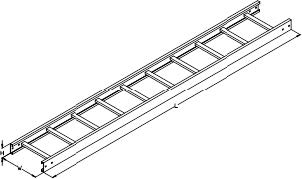

STRAIGHT SECTION	HORIZONTAL ELBOW 90DEG
HORIZONTAL TEE	HORIZONTAL CROSS
INSIDE VERTICAL 90DEG	OUTSIDE VERTICAL 90DEG
SPLICE PLATE	HORIZONTAL ADJUST PLATE
VERTICAL ADJUST PLATE	HOLD DOWN CLAMP
BOLT & NUT FOR ACCESSORIES	BOLT & NUT FOR HOLD DOWN CLAMP
OTHER TYPES OF CABLE LADDER

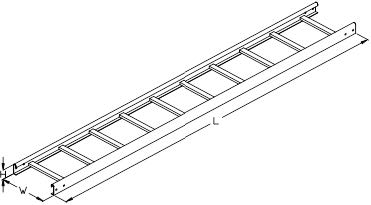

LADDER TRAY : CLC TYPE	LADDER TRAY : CLU TYPE
HEIGHT : 100, 150mm	HEIGHT : 100, 120, 150mm
AVAILABLE IN : Hot Dip Galvanized after Fabrication  Painting RAL 7032	AVAILABLE IN : Hot Dip Galvanized after Fabrication  Painting RAL 7032

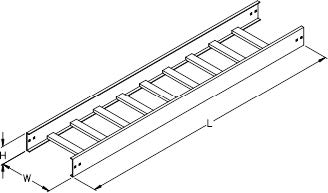

LADDER TRAY : CLJ TYPE	LADDER TRAY : CLH TYPE
HEIGHT : 100, 120, 170mm	HEIGHT : 100, 170, 200mm
AVAILABLE IN : Hot Dip Galvanized after Fabrication Painting RAL 7032	AVAILABLE IN : Hot Dip Galvanized after Fabrication   Painting RAL 7032
LADDER TRAY : CLZ TYPE
HEIGHT : 100, 150, 200mm
AVAILABLE IN : Hot Dip Galvanized after Fabrication  Painting RAL 7032
